Place of Origin:
China
브랜드 이름:
Passion
인증:
CE ISO9001
Model Number:
PPD
Sizes Available: 1/4" to 1" | No-Clamp Installation | Built for Tough Jobs

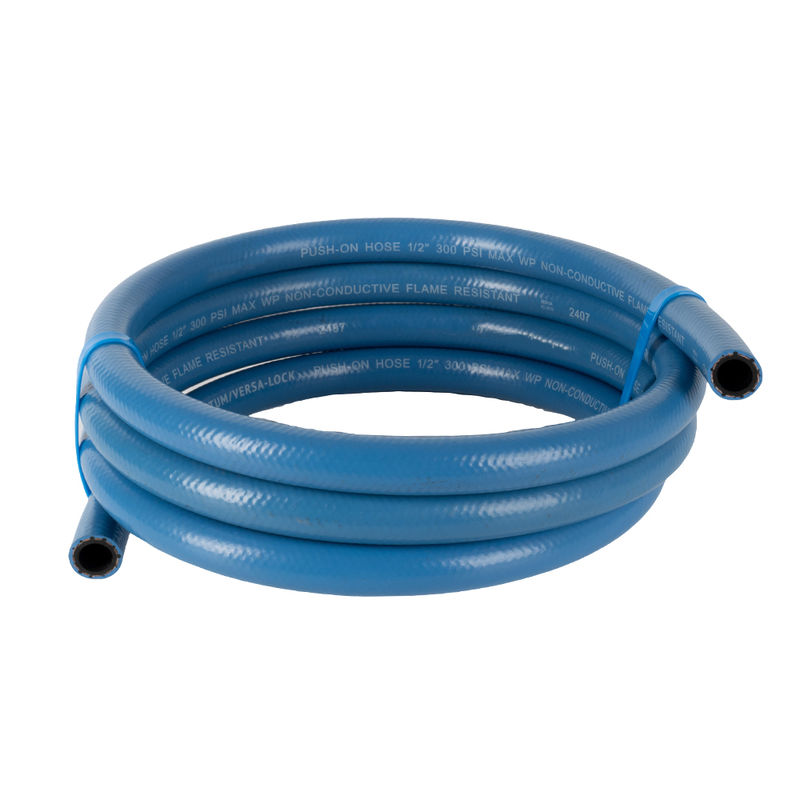

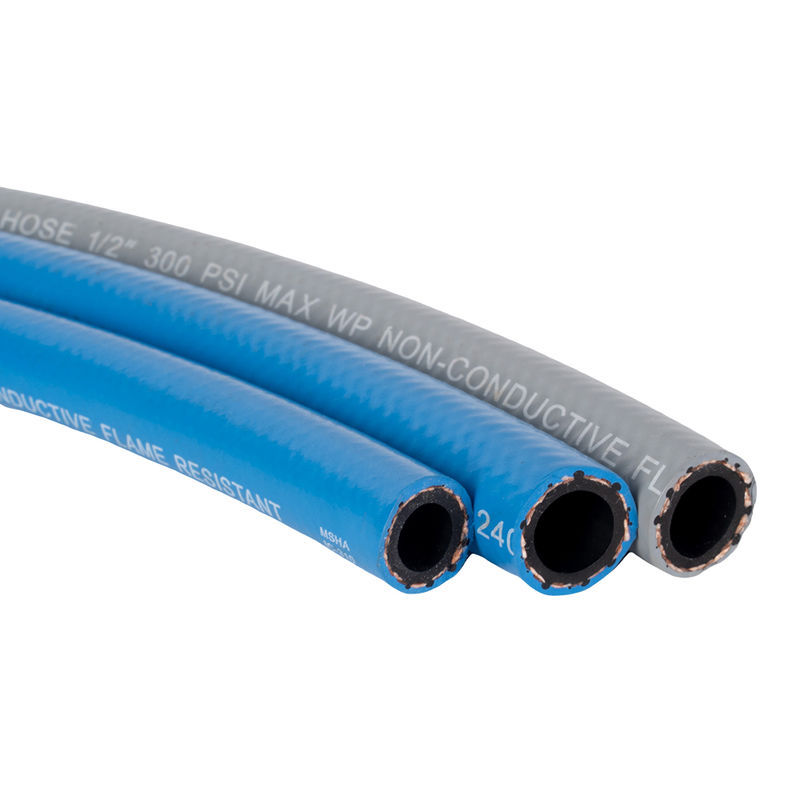

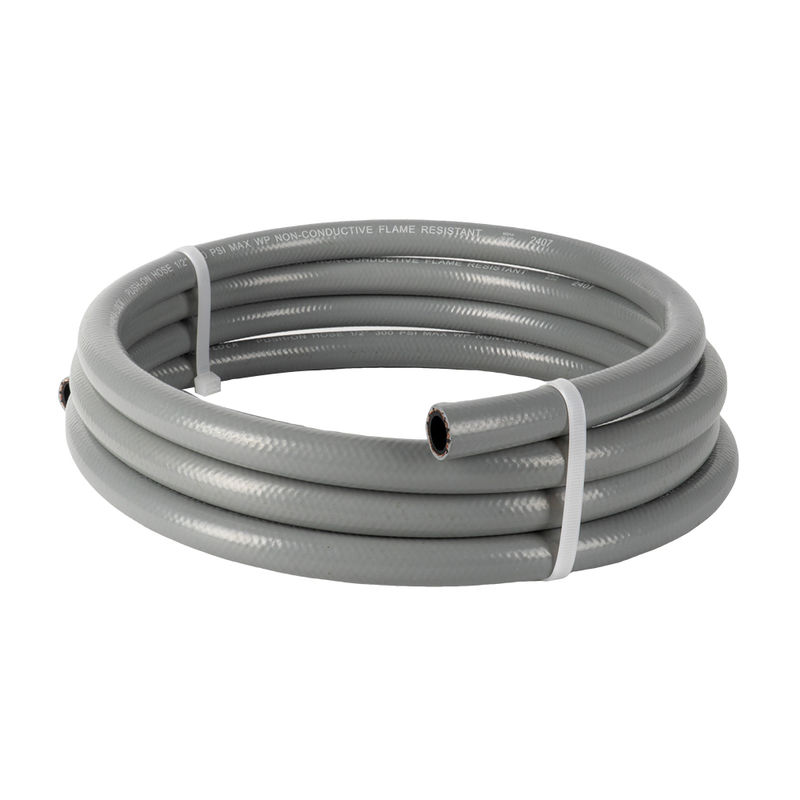

The Push Lock Hose (also known as Push-On or Push-Lock hose) is designed for quick and secure assembly without the use of external clamps. It offers reliable performance at 300 PSI, high flexibility, and extended lifespan, making it a perfect fit for challenging industrial environments.
No Clamps Needed
Simply push onto the fitting — installation is tool-free and fast.
Oil-Resistant Core
The inner tube is made from NBR rubber, meeting RMA Class A standards for oil, fuel, and gas resistance.
Tough Outer Cover
The outer layer uses CSM rubber, engineered for superior abrasion, UV, and weather protection.
Ultra Flexible & Long-Lasting
Withstands 5 million bending cycles, ideal for equipment with continuous motion or friction.
Broad Temperature Range
Functions from -30°C to 120°C, perfectly suited for indoor and outdoor use.
Electrical Insulation
Non-conductive hose body can resist voltages of 6000V or more — added safety in sensitive environments.
This hose is trusted in applications such as:
Automation & Robotic Arms
Injection Molding & Assembly Lines
T-Grade Welding Systems
Fluid Transfer (Air, Oil, Water, Emulsion)
Coiling Devices & Cable Spindles
Whether in a car manufacturing plant or industrial automation setup, this hose can handle the pressure — literally.
International Certifications: Compliant with ISO 19013 and AS 1869
4:1 Safety Factor: Ensures high-pressure security and reliability
Color Options: Standard in black, red, blue — custom colors available
Packaging: Export-ready, available in cut lengths or pallet loads per request
| Component | Material | Key Properties |
|---|---|---|
| Inner Tube | NBR Synthetic Rubber | Oil & gas resistant, RMA-A certified |
| Reinforcement | High-Tensile Fiber | Excellent strength & flexibility |
| Outer Cover | CSM Synthetic Rubber | UV, ozone, abrasion, and weather-resistant |
| Part No. | Size | I.D. (mm) | O.D. (mm) | Working Pressure | Burst Pressure | Min. Bend Radius | Weight (kg/m) | Standard Length |
| -06 | 1/4" | 6.4 | 13 | 300 PSI | 1200 PSI | 50 mm | 0.15 | 100 m |
| -08 | 5/16" | 7.9 | 15 | 300 PSI | 1200 PSI | 60 mm | 0.18 | 100 m |
| -10 | 3/8" | 9.5 | 17 | 300 PSI | 1200 PSI | 70 mm | 0.23 | 100 m |
| -13 | 1/2" | 12.7 | 21 | 300 PSI | 1200 PSI | 120 mm | 0.31 | 100 m |
| -16 | 5/8" | 15.9 | 24 | 300 PSI | 1200 PSI | 150 mm | 0.38 | 60 m |
| -19 | 3/4" | 19 | 28 | 300 PSI | 1200 PSI | 170 mm | 0.5 | 60 m |
| -25 | 1" | 25.4 | 36 | 300 PSI | 1200 PSI | 200 mm | 0.74 | 60 m |
Looking for a hose that’s easy to install, built to last, and ready for demanding environments?
This Push Lock Hose delivers unmatched performance for OEMs, automation integrators, and industrial users alike.
Customized packaging, private labeling, and bulk order options are available.
