원래 장소:
중국 장수
브랜드 이름:
PassionCo
인증:
ISO19031/AS1869
모델 번호:
1/4 -1

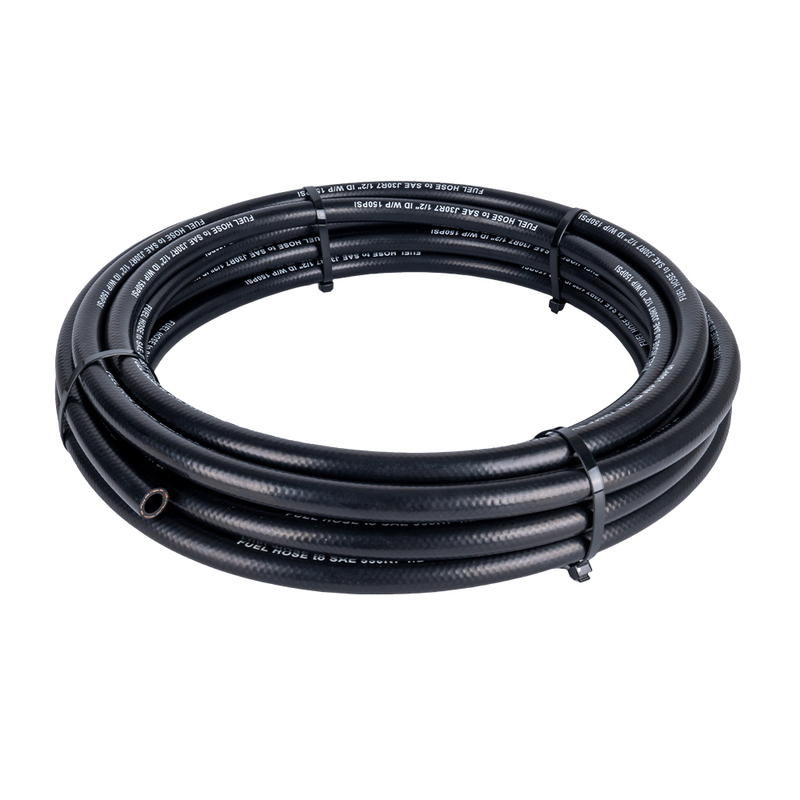

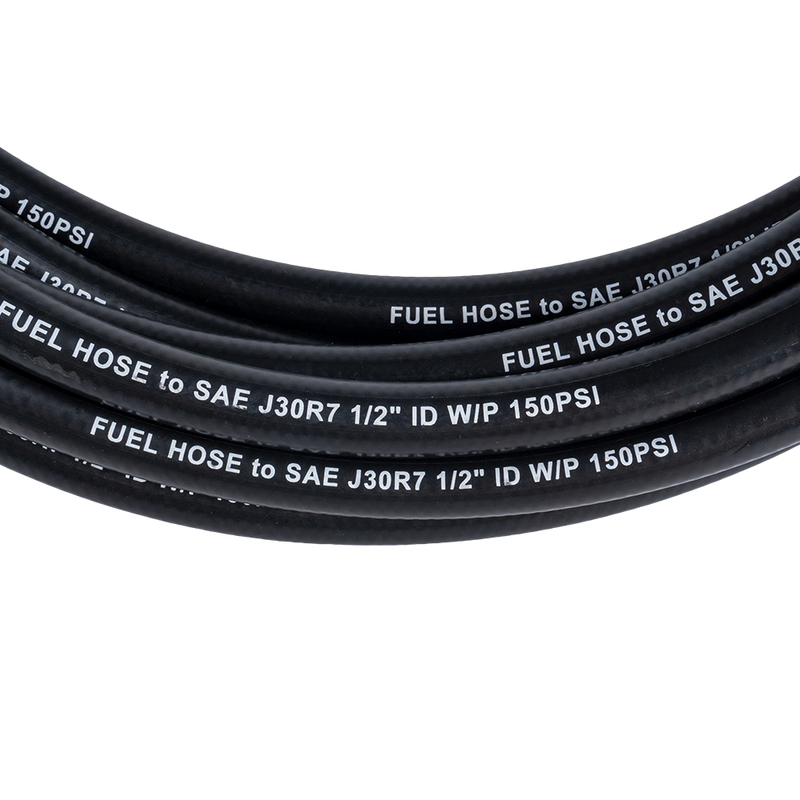

High-Quality SAE J30 R7 Fuel Hose | Gasoline, Diesel & Oil Resistant | Durable Automotive Fuel Line
Sizes Available: 1/4" to 1" | Polyester Fiber Reinforced | Flexible & Long-Lasting Fuel Hose
The SAE J30 R7 Fuel Line is designed for use in automotive fuel systems, including gasoline, diesel, lubrication oil, and vapor transfer. Its synthetic rubber inner tube provides superior resistance against fuel, oil, and ethanol gasoline, while the outer cover protects the hose from ozone, aging, and harsh weather conditions.
With temperature resistance from -30°C to +125°C (-22°F to +257°F), this hose is engineered to perform reliably in demanding environments. The high tensile polyester fiber braid reinforcement ensures excellent strength, safety, and long service life.
Fuel & Oil Resistance
Withstands gasoline, diesel, ethanol-blended fuels, and lubrication oil.
Durable Outer Cover
Resistant to ozone, weathering, and aging for extended use.
Reinforced Strength
Polyester fiber braiding adds stability and burst protection.
Wide Temperature Range
Operates effectively from -30°C up to +125°C.
Automotive Standard
Manufactured according to SAE J30 R7 compliance.
Automotive fuel supply lines
Diesel engine fuel return hoses
Lubrication oil transfer
Vapor handling in internal combustion engines
Standard: SAE J30 R7
Temperature Range: -30°C to +125°C (-22°F to +257°F)

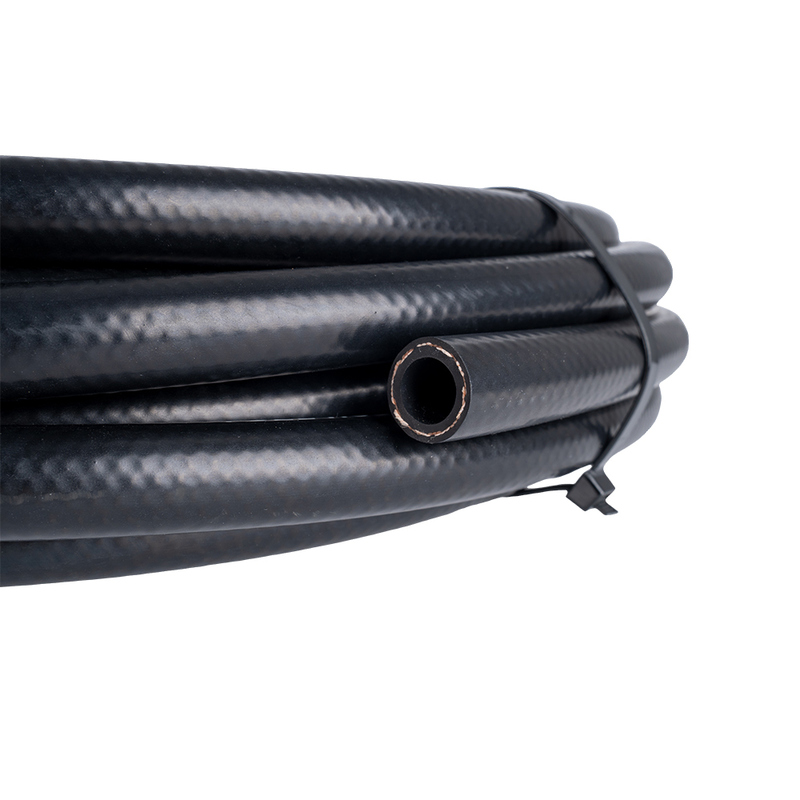

Construction:
Inner Tube: Synthetic rubber, fuel & oil resistant
Reinforcement: High tensile polyester fiber braid
Outer Cover: Synthetic rubber, ozone & weather resistant
Color: Black
| Layer | Material | Benefits |
|---|---|---|
| Inner Tube | Synthetic Rubber | Fuel & oil resistance |
| Reinforcement | Polyester Fiber Braid | High tensile strength |
| Outer Cover | Synthetic Rubber | Weather & ozone resistance |
| Code | Size (inch) | I.D. (mm) | O.D. (mm) | Working Pressure | Burst Pressure |
|---|---|---|---|---|---|
| PJ30R7-06 | 1/4" | 6.3 | 12.7 | 10 bar / 150 psi | 30 bar / 450 psi |
| PJ30R7-08 | 5/16" | 7.9 | 14.3 | 10 bar / 150 psi | 30 bar / 450 psi |
| PJ30R7-10 | 3/8" | 9.5 | 16.0 | 10 bar / 150 psi | 30 bar / 450 psi |
| PJ30R7-13 | 1/2" | 12.7 | 20.0 | 10 bar / 150 psi | 30 bar / 450 psi |
| PJ30R7-16 | 5/8" | 15.9 | 24.0 | 10 bar / 150 psi | 30 bar / 450 psi |
| PJ30R7-19 | 3/4" | 19.0 | 28.5 | 10 bar / 150 psi | 30 bar / 450 psi |
| PJ30R7-25 | 1" | 25.4 | 35.0 | 10 bar / 150 psi | 30 bar / 450 psi |
If you are looking for a reliable and cost-effective automotive fuel hose, the SAE J30 R7 is the perfect solution. It offers excellent performance with gasoline, diesel, oil, and ethanol fuel systems, ensuring safety and long-lasting durability. Available in multiple sizes and suitable for OEM or aftermarket applications.
